Endoscope and Camera System Compatibility Checklist
Map every physical, optical, electronic, software, accessory, and processing connection in the proposed imaging chain before treating the system as compatible.
Start here

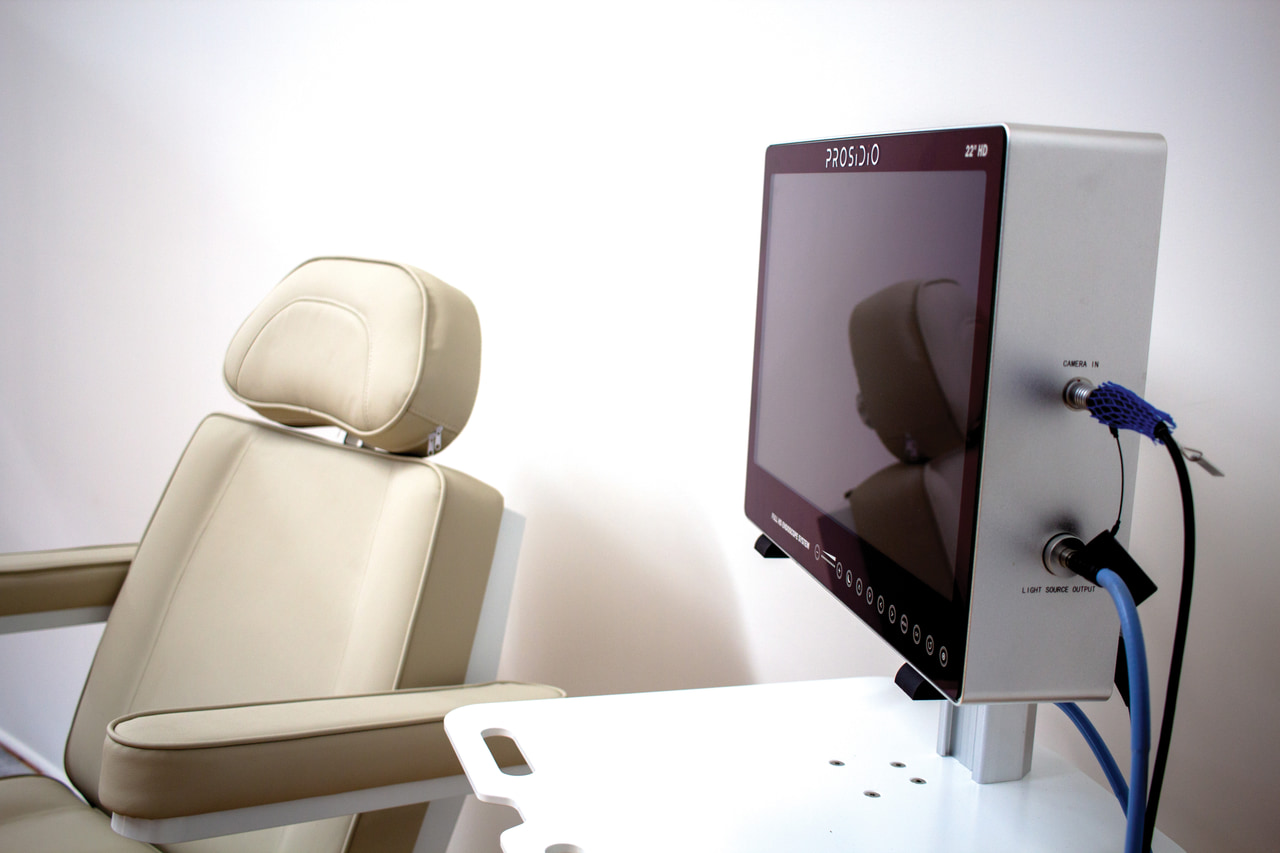

Compatibility is a documented chain, not a single yes-or-no label
A working imaging setup can depend on the exact endoscope, eyepiece or proximal connection, coupler, adapter, camera head, processor, light guide, light source, display, cable, capture device, accessory, software version, and processing instructions. A match at one connection does not confirm the rest of the chain.
Create a model-specific component map and confirm each link in current written documentation. Then assemble and test the exact configuration using the intended settings and workflow. Record any adapter, limitation, required accessory, or unresolved item.
Compatibility layers to verify
Review each layer separately. The evidence should identify exact components and revisions rather than broad brands, product families, or visual similarity.
- 01
Intended-use fit
Confirm that each component is documented for its proposed role and environment, including any stated limitations or required companion equipment.
- 02
Mechanical connection
Verify the physical interface, dimensions, locking method, orientation, support, strain relief, and every required coupler or adapter.
- 03
Optical path
Confirm the endoscope-to-camera and light-source-to-scope paths as complete configurations, including optical couplers, light guides, and adapters.
- 04
Electronic signal path
Map processor inputs and outputs, cable type, signal format, display input, capture path, external devices, and required power or data connections.
- 05
Software and settings
Record relevant software or firmware identification, enabled functions, presets, file formats, and any configuration required for connected equipment.
- 06
Care and lifecycle
Reconcile cleaning, disinfection or sterilization, inspection, maintenance, storage, service, update, and replacement instructions across connected components.
Component compatibility worksheet
Use one row for every connection in the proposed system. Add rows for adapters, switches, extenders, capture devices, or accessories that introduce another interface.
| Factor | Questions to verify | Record or request |
|---|---|---|
| Scope to coupler |
| Written compatibility evidence and the required connection method. |
| Coupler to camera |
| Exact component map, adapter list, and observed assembly notes. |
| Camera to processor |
| Supported identifiers, active mode, and applicable version information. |
| Light path |
| Complete light-path map and current instructions for each component. |
| Display and capture |
| Signal diagram, settings, and an original sample file. |
| Processing and support |
| Responsibility map, current instructions, and support escalation path. |
How to verify a proposed configuration
Written evidence and a physical test serve different purposes. Use both, and retain the result for the exact components and versions evaluated.
- Step 1
Inventory every component
Record manufacturer, product name, model or identifier, revision or version when applicable, connector, cable, adapter, accessory, and current documentation.
- Step 2
Draw every connection
Create separate optical, illumination, signal, power, data, capture, and processing maps so that no intermediate component remains implicit.
- Step 3
Collect written evidence
Attach current compatibility statements, instructions, manuals, specifications, or written confirmation that identifies the exact connected components.
- Step 4
Assemble and test
Connect the proposed configuration, inspect each interface, run the intended startup, imaging, capture, export, shutdown, handling, and storage sequence.
- Step 5
Close the exceptions
Document every discrepancy, undocumented adapter, version dependency, untested accessory, processing conflict, or support handoff and resolve it before approval.
Compatibility approval checklist
Complete all applicable items for each proposed configuration. Add the evidence source and date to the retained evaluation record.
Identification
Physical and optical path
Signal and workflow
Care and support
Approve one exact component map
Compatibility should be recorded for named components, connections, settings, and document revisions. Keep the component map with the instructions, compatibility evidence, physical test notes, original sample files, and support contacts.
Do not extend a documented match to a different model, adapter, version, accessory, or processing method without confirming that new configuration separately.
